PORTABLE DEWATERING PUMPS - TPIT MODEL
The TPIT portable dewatering pumps can be mounted
to the tractor hydraulic lifting device so that they can
be easily transported and quickly installed.
Their distinctive trait is marked by the letter I
which means that in any hydraulic movement the
pump inlet hose can rotate 360° on the horizontal
axis operated by a hydraulic engine which turns the
hose by means of a worm gear and a slewing bearing.
The letter T means that the hose can be
extended proportionally to the frame length in
order to channel the water further than using a
standard hose.
Furthermore the hose is adjusted on the vertical
axis by means of a hydraulic ram except for the
large diameter pumps which are equipped with
2 hydraulic rams as they have a considerable
water inlet.
PORTABLE DEWATERING PUMPS - TPIT MODEL
They are especially designed for surface irrigation
of agricultural fields but also for removing water
from ponds and canals.
The particular shape of the frame allows for the
pump to work with any declivity.

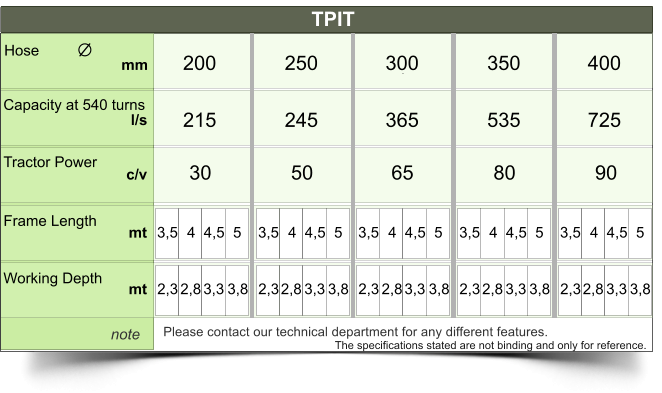

They are manufactured in various lengths and
diameters with variable performance and power
consumption. They can be supplied with operation
by means of universal joint.
